Executing the System Summary Report

Pulse v5.8 introduces a brand-new report, the System Summary report. This report will help TM1 administrators to monitor the health of their TM1 instances.

This report gathers all the most important Pulse data that you should look at when doing a health check of a TM1 instance such as user sessions, wait time and alerts.

Part 1 - Analysing the number of sessions vs number of alerts: This first chart will give you the number of sessions vs number of alerts:

Part 2 - Analysing wait time: On the left side you will see the Top 10 waiting time event and how long was the wait. On the right a bar chart to analyse the maximum wait time by period.

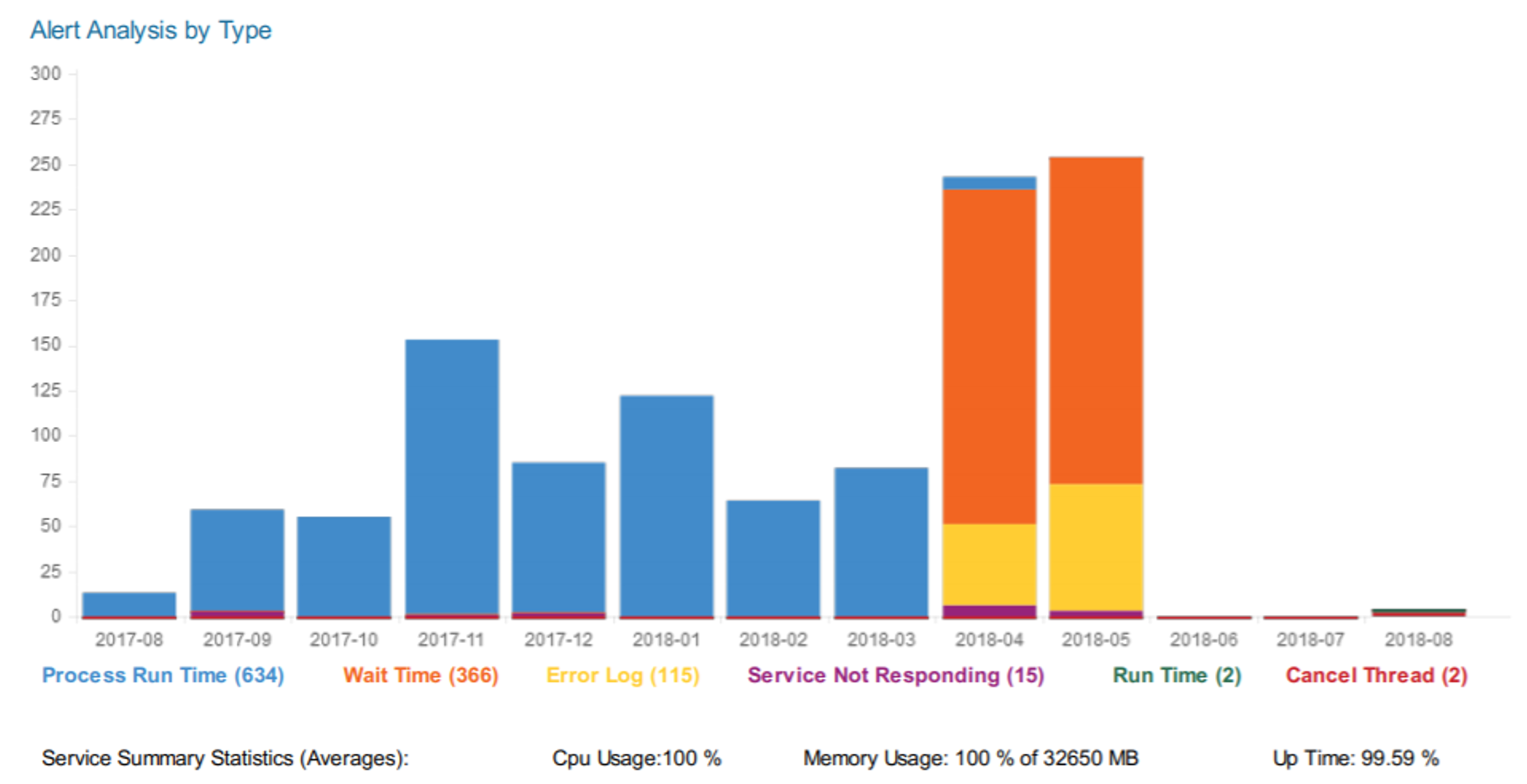

Part 3 - Analysing Alerts: This chart will give you the number of alerts by type over time.

How to run and schedule this report?

This report is only available to Pulse admin users but can be sent to anyone from a notification group. To access it, login as Admin to the Pulse Web client, from the left menu go to Reports > Performance > System Summary:

  • Select one TM1 instance

  • Select date the time frame and test the report

  • Schedule the report:

    • Select how many days of data you want to see

    • Daily Frequency of the report, how often you want it to run

    • Notification group

    • Email subject

Report time breakdown

  • If the number of days selected = 1, the breakdown will be by hours

  • If the number of days selected < 91, the breakdown will be by days

  • If the number of days selected > 90, the breakdown will be by months

 Schedule the report for the last 7 days

An example of the settings to schedule this report to be sent every day at 8:00 am containing the last 7 days of data:
